Box-X vs. Bar Tack: Why Load Direction Matters in Backpack Construction

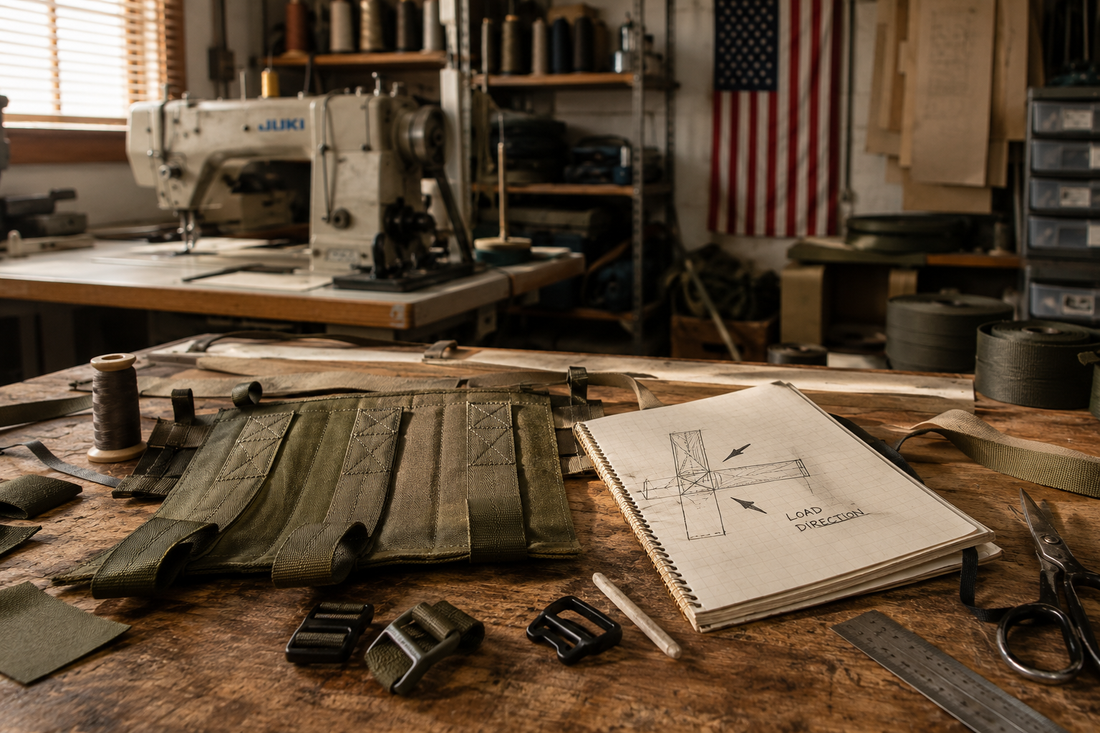

A Box-X stitch looks strong. When it's used correctly, it can be.

The pattern is easy to recognize: stitching runs around the perimeter of an overlapping section of material, with diagonal stitches forming an X through the center. It creates a relatively large reinforcement area and is commonly used on backpacks, handles, straps, outdoor equipment, and other sewn products.

But there is something you cannot determine simply by looking at the stitch pattern:

Which direction is the load coming from?

That question matters because a beautifully sewn Box-X can be an excellent reinforcement in one location and a poor engineering choice just a few inches away on the same backpack. The difference isn't necessarily the thread, the webbing, or the quality of the sewing. Sometimes the problem is that the stitch pattern and the direction of the load don't agree.

At Squatch Survival Gear, we believe reinforcement should be evaluated as part of a complete load path—not simply by the amount of stitching you can see.

Once you understand that principle, you start looking at backpack construction very differently.

A Stitch Is Part of a Load Path

A backpack isn't simply a collection of Cordura, webbing, buckles, zippers, and thread. It's a system for managing load.

When you pick up a 40-pound backpack by its grab handle, those 40 pounds don't stop at the handle. The force travels from the handle into its webbing, through the reinforcement stitching, into the supporting material and seams, and eventually into the larger structure of the pack.

The same principle applies to shoulder straps, compression straps, PALS/MOLLE webbing, buckles, attachment points, and nearly every other structural component.

A load path is the route force takes through the components and connections of a backpack.

Once you start looking at a pack this way, the question is no longer simply, "Is this reinforced?" The better question becomes, "Where does the force go after it reaches this connection?"

That distinction is especially important when comparing a Box-X with a bar tack.

Where a Box-X Works Well

Consider a backpack grab handle.

A wide piece of webbing may extend down onto the body of the pack, providing substantial overlap between the handle and the material supporting it. A properly designed Box-X can be an excellent reinforcement method in an application like this.

The larger stitching footprint helps transfer the load from the handle into the underlying structure across a relatively large attachment area. There is room for the webbing to overlap the supporting material, room for the reinforcement pattern, and an opportunity to design the connection around the expected direction of force.

There is nothing inherently wrong with a Box-X stitch. The problem begins when we assume that because a reinforcement method works well in one application, it must work equally well everywhere.

It doesn't.

Geometry and load direction matter.

The 90-Degree Cross-Strap Problem

Now change the geometry.

Imagine a large piece of webbing running horizontally across a backpack. A smaller piece of webbing passes underneath it in another direction. A Box-X is sewn over the intersection, passing through the large webbing, the smaller webbing, and the supporting material underneath.

Visually, the connection looks substantial. There are multiple layers of material, plenty of thread, and a large reinforcement pattern sitting directly over the intersection. To someone examining the backpack in a store or looking at a product photograph online, it may appear exceptionally strong.

Now pull that smaller piece of webbing outward at approximately 90 degrees to the surface.

The loading condition changes.

Instead of the two pieces of webbing primarily remaining flat against one another while force transfers through the joint, the smaller strap begins trying to bend and pull away from the assembly. This can create what is known as a peel-type loading condition.

And peel loading changes how the stitching is asked to carry force.

What Is Peel Loading?

Peel loading occurs when one material is pulled away from another so that separation tends to begin near an edge of the connection rather than loading the entire connection uniformly.

That distinction matters because we shouldn't automatically assume every stitch in a Box-X begins sharing the load equally when a smaller strap starts pulling away from the larger assembly. The area closest to where that strap bends away can experience a greater concentration of stress.

Think about removing a piece of tape. Trying to pull the entire piece straight away from a surface at once is very different from lifting one edge and progressively peeling it away.

A sewn webbing connection obviously isn't adhesive tape. Its actual behavior depends on the materials, geometry, stitch pattern, number of layers, construction method, and the direction and magnitude of the load. But the analogy demonstrates the underlying principle:

The direction in which force enters a connection influences how that connection carries the load.

Under a peel-type load, the stitches nearest the peel edge may carry a greater portion of the initial stress. If that portion of the connection begins to fail, the load can progressively transfer farther into the stitch pattern.

This is why a large Box-X containing a substantial amount of thread doesn't automatically guarantee that the entire reinforcement pattern is contributing equally under every loading condition.

More Stitching Doesn't Automatically Mean Better Engineering

Customers naturally associate more stitching with more durability, and understandably so. A large Box-X looks substantial. A dense bar tack looks substantial. Multiple rows of stitching look substantial.

When properly designed, all of those techniques can create extremely durable connections.

But visible thread alone tells you surprisingly little about whether the designer understood the load path.

A manufacturer can use excellent bonded nylon thread, quality webbing, precise industrial sewing equipment, and beautifully consistent stitching. If the geometry causes force to enter that connection in an unfavorable way, premium materials cannot completely correct the underlying design problem.

That's why at Squatch we don't believe reinforcement should be evaluated by stitch count alone.

Material + geometry + load direction + stitch placement + repeated loading all matter.

The stitch is only one part of the system.

Where Bar Tacks Enter the Conversation

A bar tack approaches reinforcement differently. Rather than creating a large perimeter pattern, it concentrates a dense series of stitches into a relatively compact area.

That allows reinforcement to be positioned deliberately relative to the components and expected load. Bar tacks can be particularly useful around webbing assemblies, PALS/MOLLE fields, attachment points, and other locations where several components intersect or where the available reinforcement area is limited.

But this does not mean a bar tack is automatically stronger than a Box-X.

That would be making exactly the same mistake in reverse.

A Box-X and a bar tack are tools. If a large attachment area provides sufficient overlap and the goal is to distribute force into the supporting structure, a Box-X may be an excellent solution. If reinforcement needs to be concentrated at a particular location or positioned relative to an expected load path, a bar tack may make more sense. Some constructions can benefit from multiple reinforcement techniques working together.

The important principle is simple:

The engineering decision should come before the stitch selection.

Good Components Don't Automatically Create a Good Backpack

The same principle extends beyond stitching.

Hardware orientation matters. Webbing orientation matters. Seam direction matters. The number of material layers matters. The order in which those layers are assembled matters. Even the location where one piece of material ends and another begins can change how forces move through a pack.

We've discussed this same concept when examining ladder locks. A quality piece of hardware can still perform poorly when its orientation works against the way the load is being applied.

Stitching is no different.

You can build a backpack from recognizable premium components and still make poor engineering decisions about how those components interact.

Good components don't automatically create a good system. Good engineering connects them into one.

Real Backpacks Don't Live in Laboratories

Backpacks don't experience force in one perfect direction. In the real world, people grab them from odd angles, sling them into trucks, pull them out of vehicles, tighten compression straps unevenly, pick them up by one shoulder strap, attach additional equipment, climb over obstacles, drop them, and sometimes carry considerably more weight than the designer probably intended.

All of those actions change the direction and magnitude of the forces moving through the pack. A grab handle that normally carries a relatively straight load may suddenly be pulled sideways. A compression strap may be loaded at an angle because of something attached to it. Webbing that looks perfectly aligned while the backpack is sitting on a workbench may behave very differently once the pack is loaded, moving, and being carried.

This is why load direction deserves so much attention during design. A reinforcement doesn't simply need to survive one impressive pull test. It needs to continue doing its job through the thousands of smaller loading events that happen during the useful life of a backpack.

Repeated Loading Is Where Design Decisions Begin to Show

Every step allows the contents of a backpack to move slightly. Every time the pack is lifted, dropped, tightened, released, pulled, or repositioned, its materials and connections experience another loading cycle. One of those events may not be particularly significant by itself, but repeated thousands of times, small differences in construction begin to matter.

This is also why maximum strength doesn't tell the entire story of durability. A reinforcement method might survive a single heavy pull yet behave differently after years of repeated loading, particularly if force continually enters the connection from an unfavorable direction.

Good backpack engineering therefore has to consider more than whether a connection is strong enough today. It has to consider how the materials, stitching, and geometry will work together over time.

A large, clean Box-X can look incredibly strong sitting on a workbench.

But the backpack isn't going to spend its life sitting on a workbench.

The Stitcher Often Sees What the Drawing Doesn't

There is another part of backpack engineering that rarely appears on a specification sheet.

The people actually sewing the product see things designers sometimes don't.

Experienced stitchers see how materials behave as layers accumulate, what happens when multiple layers of webbing meet a seam, and which constructions can be sewn cleanly and consistently. Something that looks simple on a computer screen can become unnecessarily complicated when an operator has to manipulate several layers of Cordura and webbing underneath an industrial sewing machine.

That manufacturing knowledge can make the design better.

Sometimes moving a stitch changes the way a load is transferred. Changing the order of assembly can create a cleaner and more repeatable connection. An additional sewing operation may be justified because it improves durability. In another situation, better engineering may eliminate an unnecessary operation, reducing production time without making the product weaker.

That's design for manufacturing: the product isn't just engineered to work; it's engineered so skilled people can build it correctly and consistently.

This is one reason we believe experienced American stitchers represent something much larger than sewing-machine operators.

They carry manufacturing knowledge.

And once that knowledge disappears, rebuilding it takes time.

What You're Actually Paying For

At Squatch Survival Gear, we could make gear cheaper. There are plenty of ways to do it.

We could move production overseas, chase lower labor costs, reduce manufacturing operations, choose less expensive materials, or accept common construction methods without spending as much time questioning whether they're right for the application.

Those decisions can lower a price.

But they're not why we started Squatch Survival Gear.

We're a relatively young American gear company, and in some ways that gives us an advantage: we aren't interested in doing something a certain way simply because that's how it has always been done. We're tired of seeing products designed around the cheapest acceptable solution.

So we chose a harder path.

We build our packs in the United States. That means paying American workers to cut material, operate sewing machines, assemble components, inspect products, solve production problems, and preserve the skills required to manufacture technical sewn gear here at home.

Those skills have value. Those jobs have value. And we believe the Americans doing that work deserve a living wage.

That costs more than chasing the lowest possible labor cost around the world, and we're comfortable with that.

But there's an important distinction:

A poorly designed backpack doesn't become a good backpack simply because it was sewn in America.

American manufacturing has to be paired with good design, good materials, experienced people, and the willingness to keep learning.

Designed Here. Built Here. Questioned Here.

We look at how loads move through webbing, how hardware is oriented, where reinforcement is placed, how shoulder straps transfer weight into the pack, how materials stack together, and how those assemblies can be manufactured consistently.

Then we ask what happens after the pack leaves the sewing floor.

What happens after thousands of steps? What happens when someone grabs it wrong? What happens when the pack is overloaded? What happens when the load approaches a connection from a direction we didn't expect?

When we find something we don't think is right, we change it.

Sometimes that means using a bar tack instead of a Box-X. Sometimes it means changing the direction of a piece of webbing or changing the order in which something is sewn. Sometimes the better answer requires an additional manufacturing operation. Other times, better engineering allows us to eliminate an unnecessary one.

That's the difference between simply sewing a backpack and engineering one for production and real-world use.

Quality Has a Cost. So Does Doing It Cheap.

When someone compares two backpacks on a computer screen, many of these differences are almost impossible to see.

Both might say Cordura. Both might use heavy-duty webbing. Both might advertise reinforced stitching and PALS/MOLLE compatibility. Both might look rugged in photographs.

One might cost considerably more.

The difference may be hidden inside the construction.

Part of what you're paying for is someone asking why that webbing runs in that direction, what happens when the load approaches the connection at 90 degrees, and whether another reinforcement method would work better. You're paying for experienced American stitchers who understand how multiple layers of material behave under an industrial sewing machine. You're paying for an additional manufacturing operation when it makes the product better—and for us to reject a cheaper construction method when we don't believe it's the right one.

And you're paying American workers to build it.

That's part of what quality costs.

There is also a cost to doing things cheaply. Sometimes it appears later as loose webbing or a seam beginning to separate. Sometimes it's hardware that repeatedly slips because its orientation works against the load. Sometimes it's an attachment point slowly working itself apart. And sometimes the customer simply throws the product away and buys another one.

The cheapest product at checkout isn't necessarily the least expensive product to own.

Being a Young Brand Means We Still Ask Why

One of the things we value about being a younger company is that we still question things.

Why is that Box-X there? Where is the load going? Why is that buckle facing that direction? Why are we using this material? Can our stitchers build this consistently? Can we make it easier to manufacture without making it weaker? What happens to this connection after thousands of repetitions?

And perhaps the most important question is this:

Are we doing it this way because it's the right way to build it—or because it's the way everybody else does it?

We don't claim every decision we make will be perfect. Engineering doesn't work that way. Products get used. Weaknesses are discovered. Manufacturing teaches you things drawings don't, and field experience teaches you things manufacturing doesn't.

Then you take what you've learned and make the next product—or the next version of the product—better.

Failure may sometimes be unavoidable.

Learning from failure is a choice.

We're not trying to become the cheapest backpack company or the company that crams the most features into a specification sheet. We're trying to build a company that understands why its products are constructed the way they are and is willing to spend the time and money necessary to build them correctly.

The Details Most People Will Never See

Which brings us back to something as seemingly insignificant as a Box-X.

Most customers will never inspect one. They won't analyze the load path or think about peel loading. They probably won't wonder whether a bar tack would have been a better reinforcement method.

And they shouldn't have to.

That's our job.

Our customer should be able to load the pack, put it on, pick it up, throw it in the truck, carry it down a trail, travel with it, and use it year after year without thinking about why the webbing hasn't pulled loose.

That's what they're paying us to think about.

American materials matter. American manufacturing matters. Experienced American stitchers matter. Engineering matters. And the tiny construction decisions most customers will never see matter because quality isn't created by one big decision.

It's created by hundreds of small ones.

A Box-X isn't inherently a good stitch or a bad stitch. A bar tack isn't automatically better. They're tools.

The real engineering isn't simply knowing how to sew either one. It's knowing where to put it, how to orient it, what materials to use with it, and which direction the load is going to come from.

At Squatch Survival Gear, that's what we believe American-made gear should be.
